Footswitch
4-Button Footswitch Included
Included Accessories
5-Foot Speaker Cable
Sale

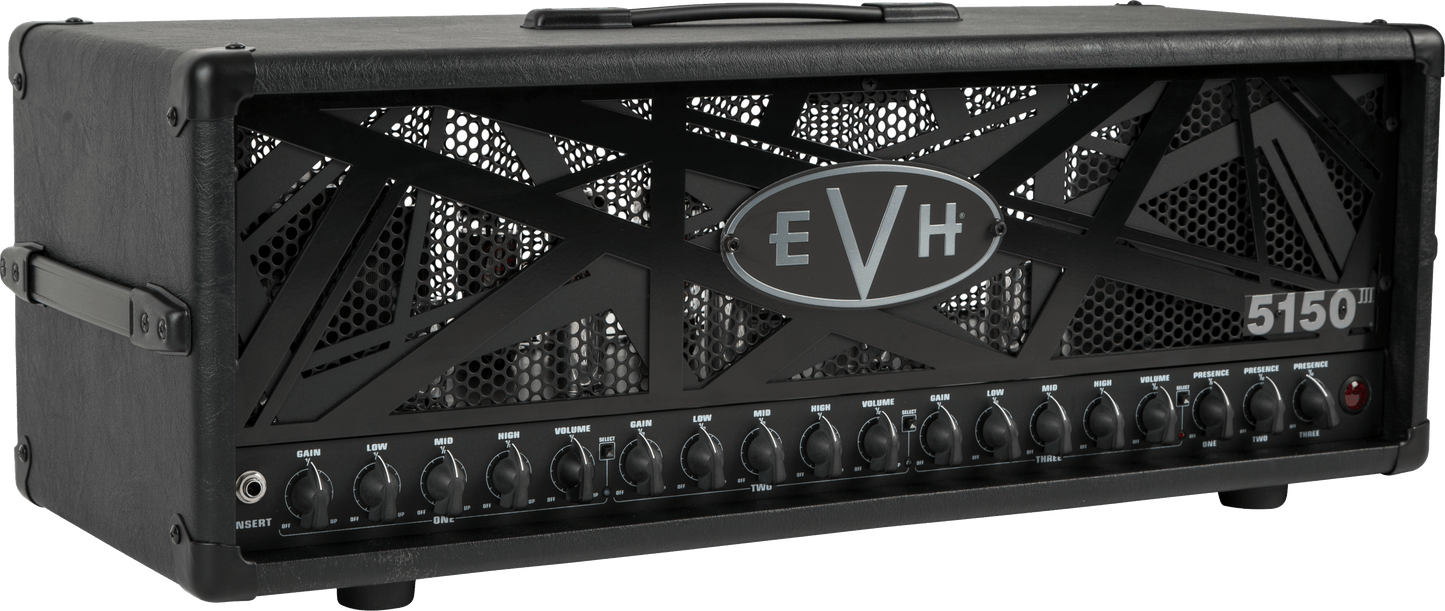

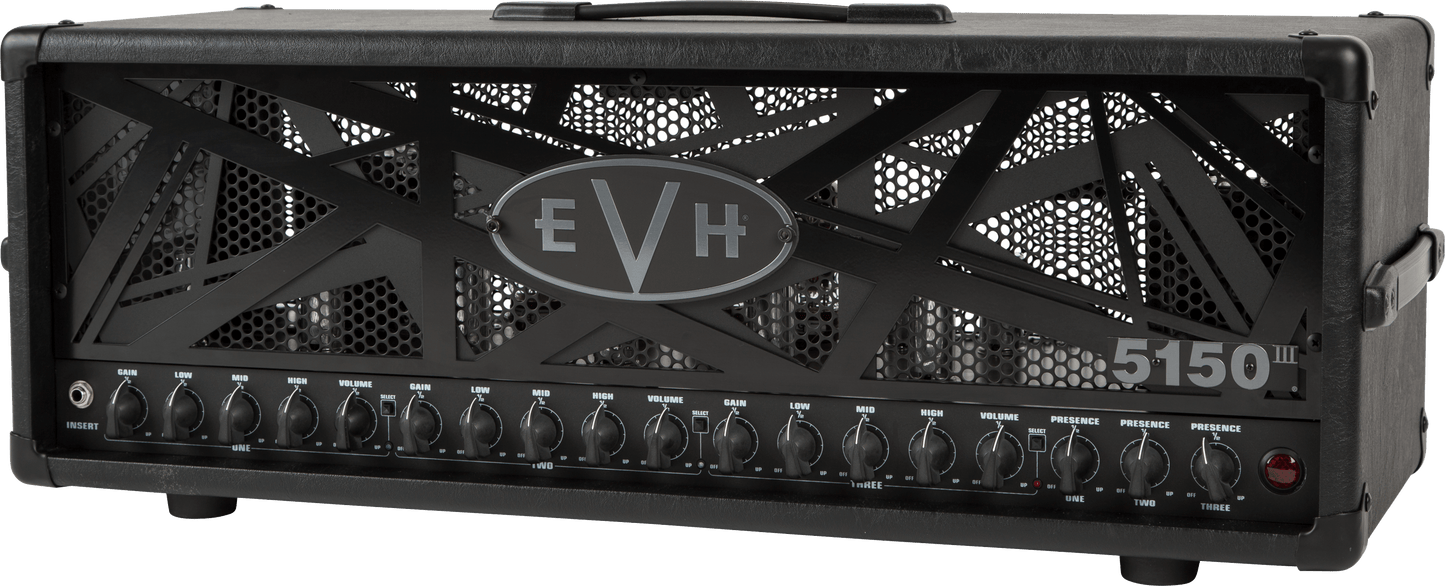

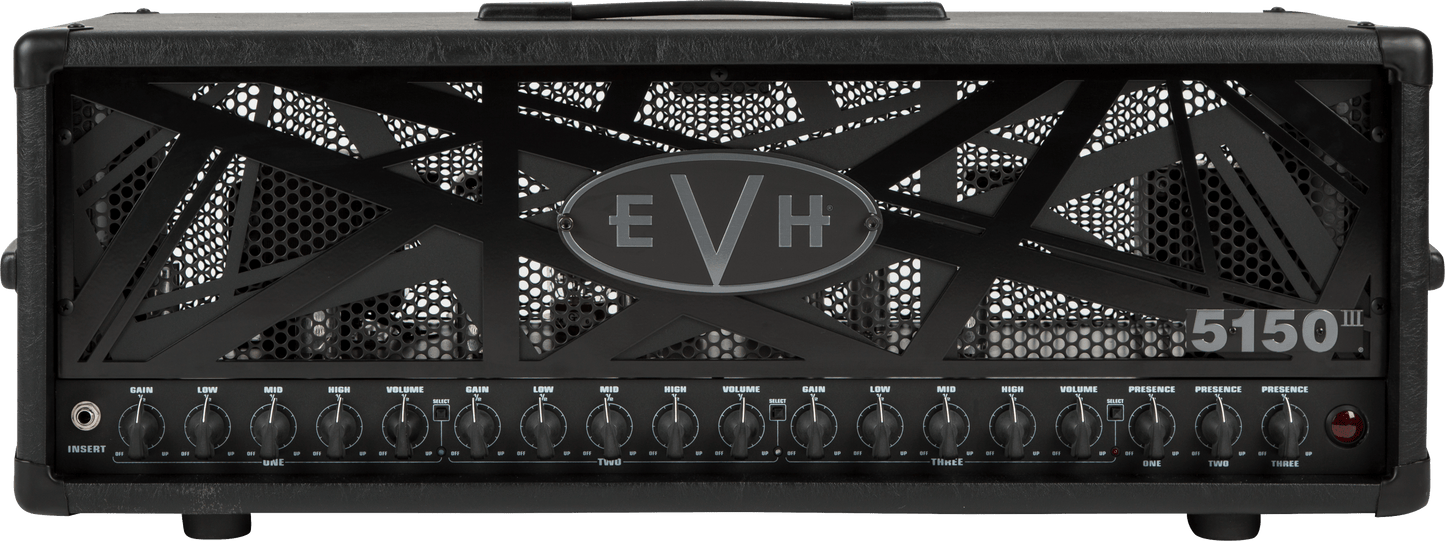

5150III® 100S Head
5150III® 100S Head
Model #:
2250256000
Regular price
56.179,00 Kč
Regular price
56.179,00 Kč
56.179,00 Kč
Sale price
Unit price
per
inc. VAT*
Couldn't load pickup availability
5150III® 100S Head
Regular price
56.179,00 Kč
Regular price
56.179,00 Kč
56.179,00 Kč
Sale price
Unit price
per
Overview
This hand-customized EVH 5150III® 100S head is identical to the setup Eddie Van Halen most recently toured with, featuring his exact same custom modifications.
Not just dressed in a seductively dark finish, this 100-watt Stealth head roars with its own unique voice - tweaked with added features specifically to meet Eddie Van Halen's touring requirements. Channel one soars with pristine and sparkling cleans; channel two features increased gain for greater sustain and is re-voiced for improved low-mid frequency definition; channel three also features increased gain and improved range for the "low" control. Each channel has its own versatile controls (volume, gain, presence, low, mid, high), as well as a rear-panel resonance control knob that dials in fine-tuned low-end response.
The amp also has eight JJ ECC83 preamp tubes, four Shuguang 6L6 power tubes, switchable output impedance (4, 8 and 16 ohms), adjustable bias control, vintage-style "chicken head" control knobs, red jewel, dual speaker jacks, effects loop, direct out and molded plastic handle.
Overview
Features
- Dual speaker jacks on amp rear panel
- Resonance control for each channel on amp rear panel
- Increased gain on channel two for more sustain
- Re-voiced channel two for improved low-mid frequency definition
- Increased gain on channel three for greater sustain
- Improved range of "low" control for channel three
- Special Stealth aesthetic
- Adjustable bias control
Specs
Channels
Three - (Clean, Crunch and Lead)
Connection Type
7-Pin DIN
Control Panel
Gain, Low, Mid, High, Volume, Channel Select, Presence and Resonance for Each Channel
Controls
Gain, Low, Mid, High, Volume, Channel Select, Presence and Resonance for Each Channel
Effects Loop
1/4" (Send/Return)
Inputs
One - 1/4"
Line Out
One - 1/4"
Wattage
100 Watts
Amplifier Type
Tube
Color
Black
Product Name
5150III® 100S Head, Black, 230V EUR
Series
EVH® 5150III® Heads
Amplifier Covering
Black Textured Vinyl
Cabinet Material
White Birch
Control Knobs
Black Chicken-Head Style Pointer
Front Panel
Black
Grille Cloth
Perforated Steel Front and Rear Panel
Handle
Molded Plastic Strap with Nickel-Plated Caps (1 Top & 2 Sides)

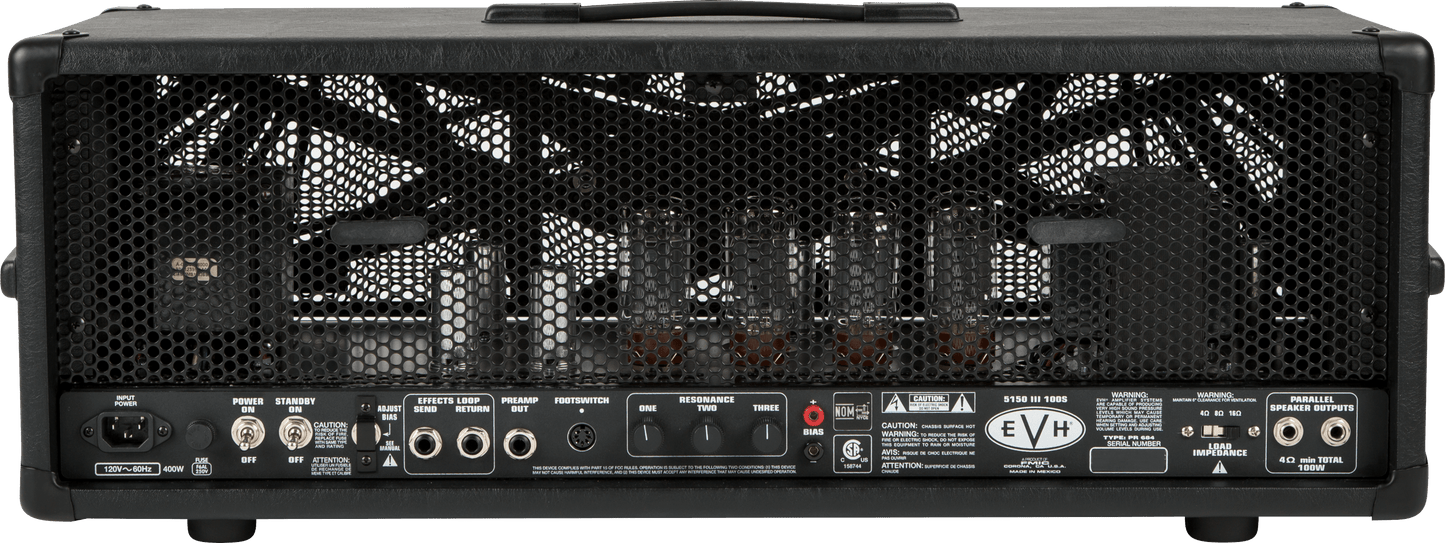

Rear Control Panel
Power, Standby, Bias Adjust, Resonance For All Three Channels, Load Impedance
Speaker Jack
Two - 1/4" Parallel
Power Tubes
4 x Shuguang 6L6 Matched
Product Depth
12" (30.5 cm)
Product Height
11" (27.94 cm)
Product Height/Length
11" (27.94 cm)
Product Weight
55 lbs. (24.95 kg)
Product Width
30" (76.2 cm)
Refinement Weight
51-75
Power Cable
IEC
Total Impedance
4, 8, or 16 ohms
Power Tubes
4 x Shuguang 6L6 Matched
Preamp Tubes
8 x JJ ECC83S (12AX7)
Rectifier
Solid State
